48V Led Flexible Ribbon 20m Long Running White Flexible Led Strip Lights Waterproof

MOQ ：100 meter

Lead Time ：10 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C,T/T,Money Order

Departure Port : Changzhou or Shanghai

Product details

Supply Ability

Supply Ability：15000 piecesWarranty(Year)：5 Year

Product Specifications

Brand name：YIZEE LIGHT
Input voltage：24v
Light Source：LED
Avg Life(Hr)：50000h
Color：White
LED Type：Other
Strip Type：Flexible
Power：9.6W/Meter
Color Temperature：1900K/2300K/2700K/3000K/4000K/6000K

Product Description

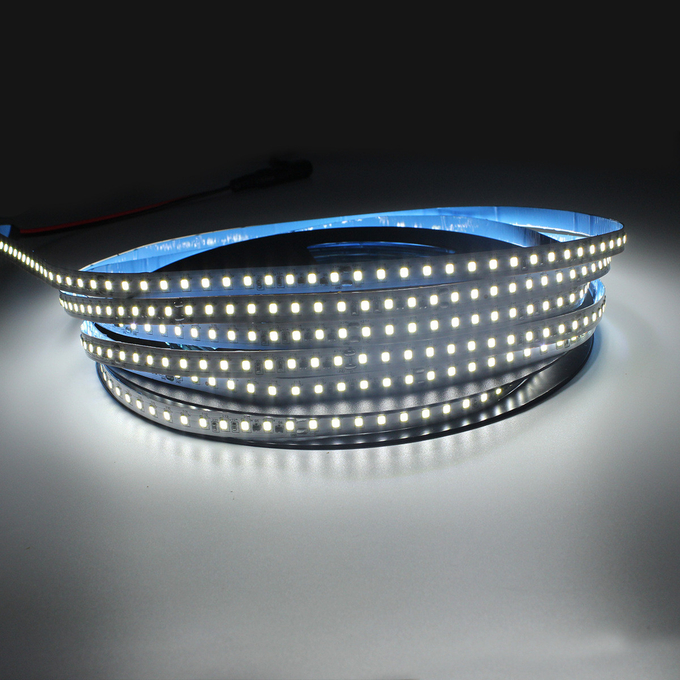

8mm 10mm Width Flexible LED Strip 9.6W 48V 120LEDs 2835 LED Tape

Q1: How long is a 48V Flexible LED strip?

A1: 48V ultra-long LED strip light can be up to 60 meters long without voltage drop for single power input. According to Ohm's law, power is equal to voltage times current. In the case of certain power, the higher the voltage, the lower the current.

Product Description

1. SMD 2835,one bin only,SDCM<3

2. Suitable for commercial stylish lighting in conjunction with BSD 48V series power supply

3. High quality PFC, high thermal 3M adhesive

4. With life span over 60000H

5. Suitable for various dimming controllers

Product Parameter

Model No	S8120-48V-8mm/10mm
PCB Width	8 mm / 10mm
LED Qty/m	120Leds/M
PCB materials	2Oz Double-sided coated pure copper
Voltage(V)	48V DC
Power(W)	9.6 W/Meter
Luminous(lm/m)	max 860
LED Chip Brand	Sanan
LED BINs	3-Step, one BIN only for each order
CRI(RA>)	CRI >90 (CRI>80,CRI >95 optional)
Color Tempertature	2700/3000/4000/6000k
IP Rate	IP20/IP55/IP65/IP67
View Angle	120
Product Size(mm)	500081.5mm ; 5000101.5mm
Package(m/roll)	20M/roll (Customized length available)

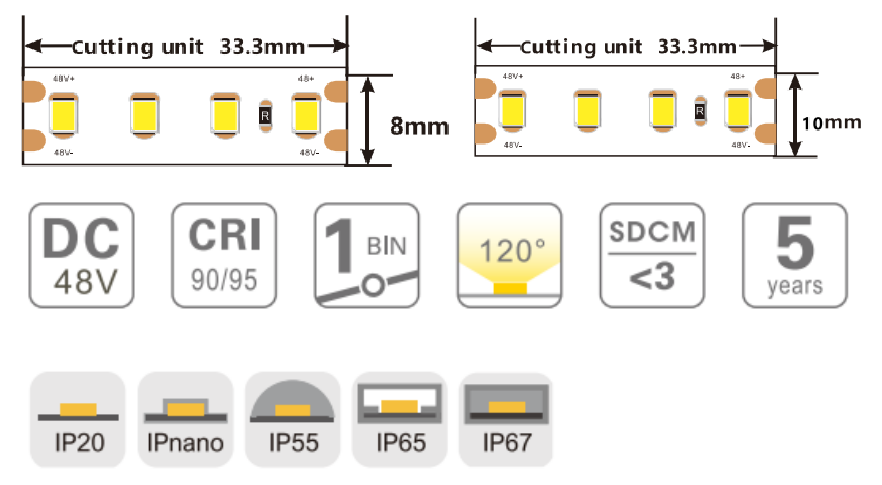

Cutting Unit	4LED/33.3mm
Adhesive Tape	55230H 3M tape
Dimmable	Yes
Certificate	UL,CE
Warranty	5 Years

CRI	CCT	LM/M	LM/W	Energy efficiency Class
＞90	2700K	782	81	G
	3000K	821	86	G
	3500K	834	87	G
	4000K	860	90	G
	6000K	821	86	G

Product Images

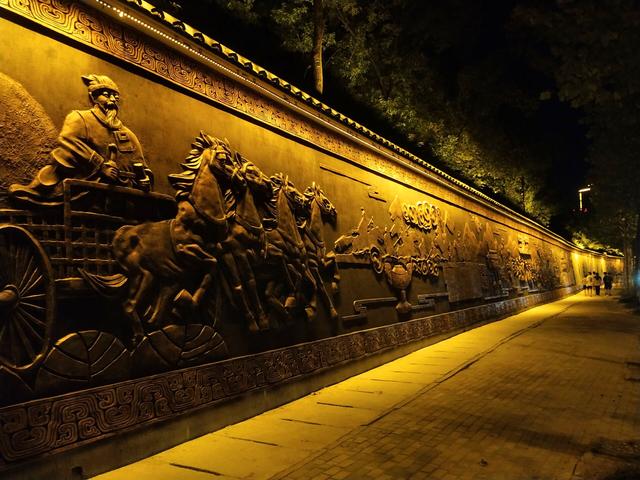

Application

Our Services

1. We can help all our customers in installing, design, and OEM/OED service.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.

4. We have rich experiences in different projects, we can provide professional customize service for customers who focus on project.
5. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
6. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.

FAQ

Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.

Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, but we also accept small order for trail.

Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.

Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.

Q5: What's the payment term?
A5: We accept T/T, PayPal , Cash.

Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
